Oracle equi join

When we use “=” (equal) operator as join condition, then it is called as equi join. There are three types of equi joins:

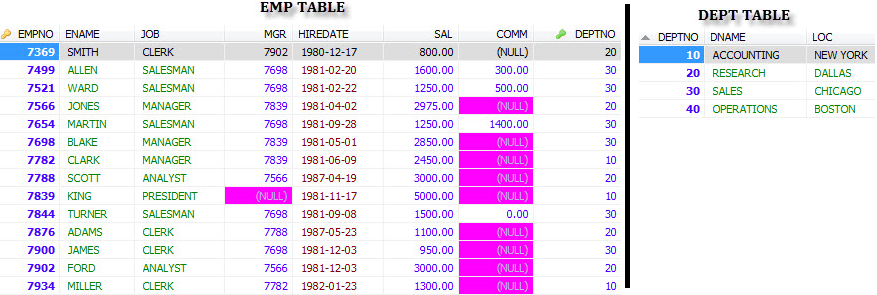

For all the examples throughout this chapter we use the below tables:

CREATE TABLE DEPT

(DEPTNO NUMBER(2) CONSTRAINT PK_DEPT PRIMARY KEY,

DNAME VARCHAR2(14) ,

LOC VARCHAR2(13) ) ;

CREATE TABLE EMP

(EMPNO NUMBER(4) CONSTRAINT PK_EMP PRIMARY KEY,

ENAME VARCHAR2(10),

JOB VARCHAR2(9),

MGR NUMBER(4),

HIREDATE DATE,

SAL NUMBER(7,2),

COMM NUMBER(7,2),

DEPTNO NUMBER(2) CONSTRAINT FK_DEPTNO REFERENCES DEPT);

INSERT INTO DEPT VALUES (10,'ACCOUNTING','NEW YORK');

INSERT INTO DEPT VALUES (20,'RESEARCH','DALLAS');

INSERT INTO DEPT VALUES (30,'SALES','CHICAGO');

INSERT INTO DEPT VALUES (40,'OPERATIONS','BOSTON');

INSERT INTO EMP VALUES (7369,'SMITH','CLERK',7902,to_date('17-12-1980','dd-mm-yyyy'),800,NULL,20);

INSERT INTO EMP VALUES (7499,'ALLEN','SALESMAN',7698,to_date('20-2-1981','dd-mm-yyyy'),1600,300,30);

INSERT INTO EMP VALUES (7521,'WARD','SALESMAN',7698,to_date('22-2-1981','dd-mm-yyyy'),1250,500,30);

INSERT INTO EMP VALUES (7566,'JONES','MANAGER',7839,to_date('2-4-1981','dd-mm-yyyy'),2975,NULL,20);

INSERT INTO EMP VALUES (7654,'MARTIN','SALESMAN',7698,to_date('28-9-1981','dd-mm-yyyy'),1250,1400,30);

INSERT INTO EMP VALUES (7698,'BLAKE','MANAGER',7839,to_date('1-5-1981','dd-mm-yyyy'),2850,NULL,30);

INSERT INTO EMP VALUES (7782,'CLARK','MANAGER',7839,to_date('9-6-1981','dd-mm-yyyy'),2450,NULL,10);

INSERT INTO EMP VALUES (7788,'SCOTT','ANALYST',7566,to_date('13-JUL-87')-85,3000,NULL,20);

INSERT INTO EMP VALUES (7839,'KING','PRESIDENT',NULL,to_date('17-11-1981','dd-mm-yyyy'),5000,NULL,10);

INSERT INTO EMP VALUES (7844,'TURNER','SALESMAN',7698,to_date('8-9-1981','dd-mm-yyyy'),1500,0,30);

INSERT INTO EMP VALUES (7876,'ADAMS','CLERK',7788,to_date('13-JUL-87')-51,1100,NULL,20);

INSERT INTO EMP VALUES (7900,'JAMES','CLERK',7698,to_date('3-12-1981','dd-mm-yyyy'),950,NULL,30);

INSERT INTO EMP VALUES (7902,'FORD','ANALYST',7566,to_date('3-12-1981','dd-mm-yyyy'),3000,NULL,20);

INSERT INTO EMP VALUES (7934,'MILLER','CLERK',7782,to_date('23-1-1982','dd-mm-yyyy'),1300,NULL,10);

COMMIT;

Self Join

The self join joins a table to itself, as if the table were two tables, temporarily renaming at least one table in the SQL statement using a table alias.
Self joins are useful when all the data you want to retrieve resides in one table, but you must somehow compare records in the table to other records in the table. For example suppose you have a table that stores an employee identification number, the employee’s name, and the employee identification number of the employee’s manager. You might want to produce a list of all employees and their managers’ names.

SELECT E.ENAME, E1.ENAME AS MANAGER

FROM EMP E JOIN EMP E1

ON E.MGR = E1.EMPNO;
